How to Measure Your Tower for a Cargo Держатель Bimini

Please measure your wakeboard tower following the simple instructions below so you know what size of  Cargo Держатель Bimini you need.  This bimini top fits virtually all wakeboard towers.

1) The frame of the Cargo Держатель Bimini mounts between the legs of the tower.  Determine which is narrower:  the space between the two rear legs on your tower or the space between the two front legs.  The narrower of the two will determine the width of the bimini that can be fit between them.

2) Take the following measurement between the legs that have the narrower space.  The distances measured need not be exact.

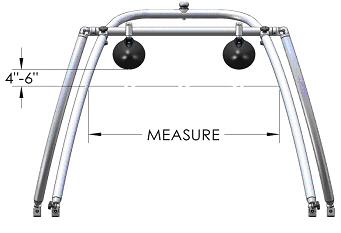

    a)  If you have accessories such as speakers hanging from the top of the tower, measure the inside width of the tower 4” to 6” below those accessories as shown below.  How far down you measure impacts the available headroom and clearance for wakeboards or infltables stored on top of the bimini top.

Wakeboard Tower Bimini Top with Accessories

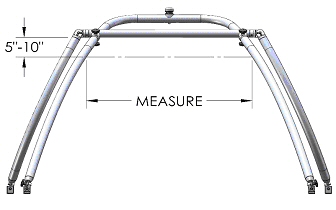

     b) If you have no hanging accessories, measure the inside width 5” to 10” from the bottom of the top section of the tower:  How far down you measure impacts the available headroom and clearance for wakeboards or infltables.

Size Options

Once you have this width measurement, you can determine the bimini size that you need.

If you measured:

 Bimini Size

53" - 65"

SMALL

65" - 77"

MEDIUM

If your measurement is a little less than 65”, then it may be better to get the medium bimini and mount it a little farther down the legs.  However, this will reduce headroom.  Although headroom is essential, some headroom can be sacrificed for the additional shade of a wider bimini.  The width of the bimini canvas is close to the lower end of each measurement range.  The remainder of the width is compensated by telescoping members that do not provide shade coverage for the gap between the tower and bimini.

Order your Cargo Держатель Bimini here.

Should you have any other questions about measuring for your Cargo Bimini Держатель please call us at 1-877-778-6937.
